The iQ-Multispectral is a multispectral illumination device based on iQ-LED technology to enhance digitalization and the preservation of documents, texts, or images.
Multispectral imaging is used to visualize certain inscriptions on objects that are not visible using standard photography. An example of this is the hidden inscriptions found on the security printing of a euro banknote. Under the right light, different inscriptions on the banknote can be seen.
The iQ-Multispectral device uses the narrowband light source method. As previously stated, this device is based on iQ-LED technology and has 19 channels in the visible range and 11 additional channels in the VIS-IR range. It also contains one UV LED.
The iQ-Multispectral therefore covers the spectral range between 380 nm and 1050 nm. In addition, the UV LEDs (at 365 nm) uses a bandpass filter to block out any light in the visible range.

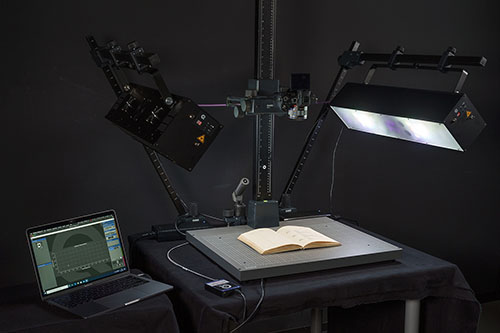

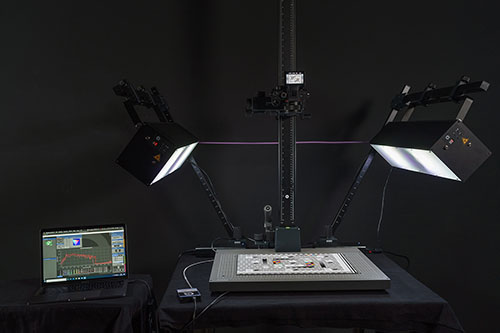

The setup of the device is very much the same as that of a typical reprographic stand. You can combine the solution with any holder or book cradle that allows the integration of a standard light source. Our solution builds on the Kaiser reprographic system (you have the option to buy the lights separately without a stand and use a custom stand or setup) and is designed for original paper sizes up to A2. Please be aware that the light sources and the stand are sold separately.
The device is delivered with the iQ-LED control software for complete control over the illumination. With this software, you can generate specific spectral distributions of the light (e.g., daylight or tungsten) and use it for standard reprographic applications or you can activate single channels for multispectral applications and store them for future use. You can also create fully automated sequences with selectable time intervals.
We offer an optional advanced programming interface (iQ-LED API) for integrating the system into custom software.
iQ-Multispectral - Basic
As a basic setup, you can also choose to have the iQ-Multispectral delivered without a spectrometer* and instead have a device with preconfigured illuminants. These illuminants must be individually requested (up to 40) and programmed into your device before delivery.
This possibility significantly reduces the total cost of the product and is an excellent option for new or smaller test labs looking to upgrade their image quality testing.
Please contact our sales department to get started with a basic product.
*A spectrometer can be purchased at a later date if desired.
| iQ-Multispectral | |
|---|---|
| Principle | Diffuse light panels that use iQ-LED technology (includes a micro-spectrometer) to illuminate a reproducible scene for multispectral imaging. |
| Light source (per panel) | 2 x iQ-LED V2 each with 41 SMD high power LEDs separated into 20 color channels and a spectral range of 380 - 820 nm 3 x iQ-LED VIS-IR with 11 additional channels, expands the spectral range to 380 - 1050 nm 2 x iQ-LED UV each with 2 SMD high power LEDs (365nm plus bandpass filter) |
| Bandpass filter for UV channel (optional) | 350 nm Hard Coated Bandpass Interference Filter 50nm FWHM 365 nm Hard Coated Bandpass Interference Filter 10nm FWHM |
| Uniformity | Up to 90% for A2 space |
| Illumination stability | +/- 1% when stabilized (2% after switching D illuminants in the first 5 sec) |
| Response time | < 50 ms |
| Dim function | iQ-LED: Software-based by presetting the intensity, or by selecting different pre-stored intensity illuminants directly on the device |
| Predefined standard illuminants | D50, D55, D65, D75, A, B, C, E |
| Service life | 10,000 h (iQ-LED V2) |
| Power supply | 210 - 230 V / 230W |
| Dimensions per panel (W x H x D) | 665 mm x 160 mm x 130 mm |
| Weight (per panel) | 5.8 kg |
