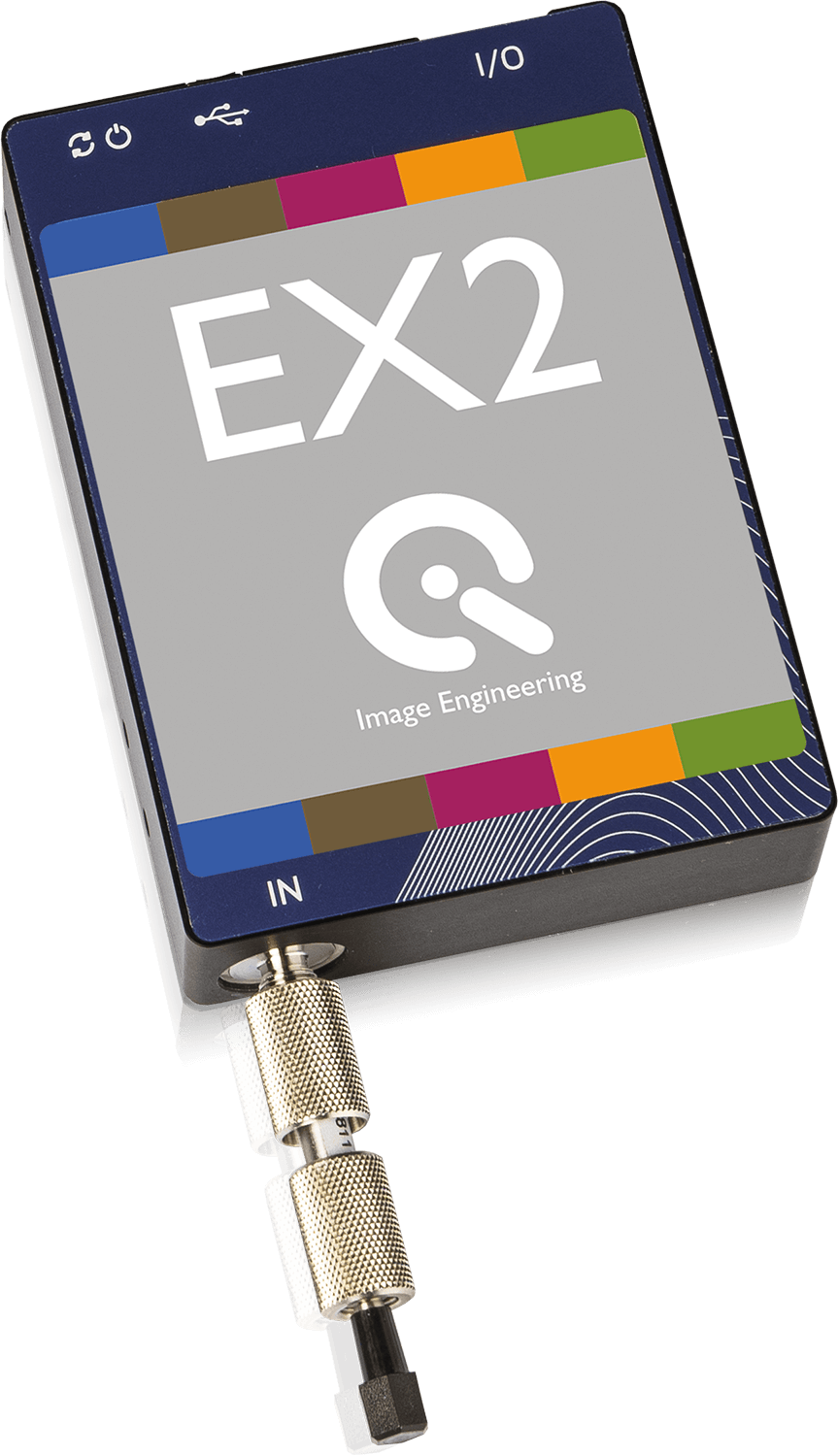

EX2 V2*
The spectrometer that we use in most of our LED devices is also available as an external measuring device, the EX2 V2. The first version of the EX2 had two devices, one for the visible spectrum and one for the IR spectrum. The second version of the EX2 combines both the visible and IR spectrum into one device. It has a more comprehensive spectral range of 200 – 1100 nm (Irradiance calibration: 305 – 1100 nm), ensuring that it covers both spectrums.
The EX2 comes entirely NIST traceable calibrated and includes user-friendly software that can import the spectral distribution of a light source into your LED device and reproduce it in a matter of seconds.
Delivered product includes an attached USB cable.
*Please note that Image Engineering does not manufacture this device. Our IE logo is added solely for marketing purposes.
| Principle | Direct measuring via optical fiber opening (~25° FOV), or cosine corrector add-on (~180° FOV) |
| Spectral range | 200 – 1100 nm (Irradiance calibration: 305 – 1100 nm) |
| Resolution | 2048 pixel |
| Integration time | 30 us – 59 s |
| Control System | Software-based control |
| System requirements | Windows 7 operating system (or higher), USB port |
| Recommended calibration period | Once a year, regardless of the operating hours |
| Power supply | 5V via USB |
| Dimension |
95 x 68 x 20 mm |
| Weight | 174 g |
| Delivery includes | Fully calibrated EX2 external measure device, cosine corrector add-on, transport box, calibration certificate, USB cable |
