Flare target according to ISO 18844
The TE281 Flare test chart is designed to determine the amount of lens flare, which is added to an image by a camera.
Flare arises from reflections of light at every surface inside of the lens and camera. It reduces the image quality by producing a diffuse veil over the image field and thus leads to a loss of contrast.
The super black holes of the TE281 generate the lowest possible black level because they absorb a high proportion of light. But this black level will be affected (raised) by flare.
The iQ-Analyzer’s Flare module compares the white level and the black level in the test image. The software calculates the proportion of scattered light. This delivers the loss of contrast caused by scattering light.
Technical information
The test chart is available in size A1066. The relevant area used for the analysis has a size of 750 x 500 mm.

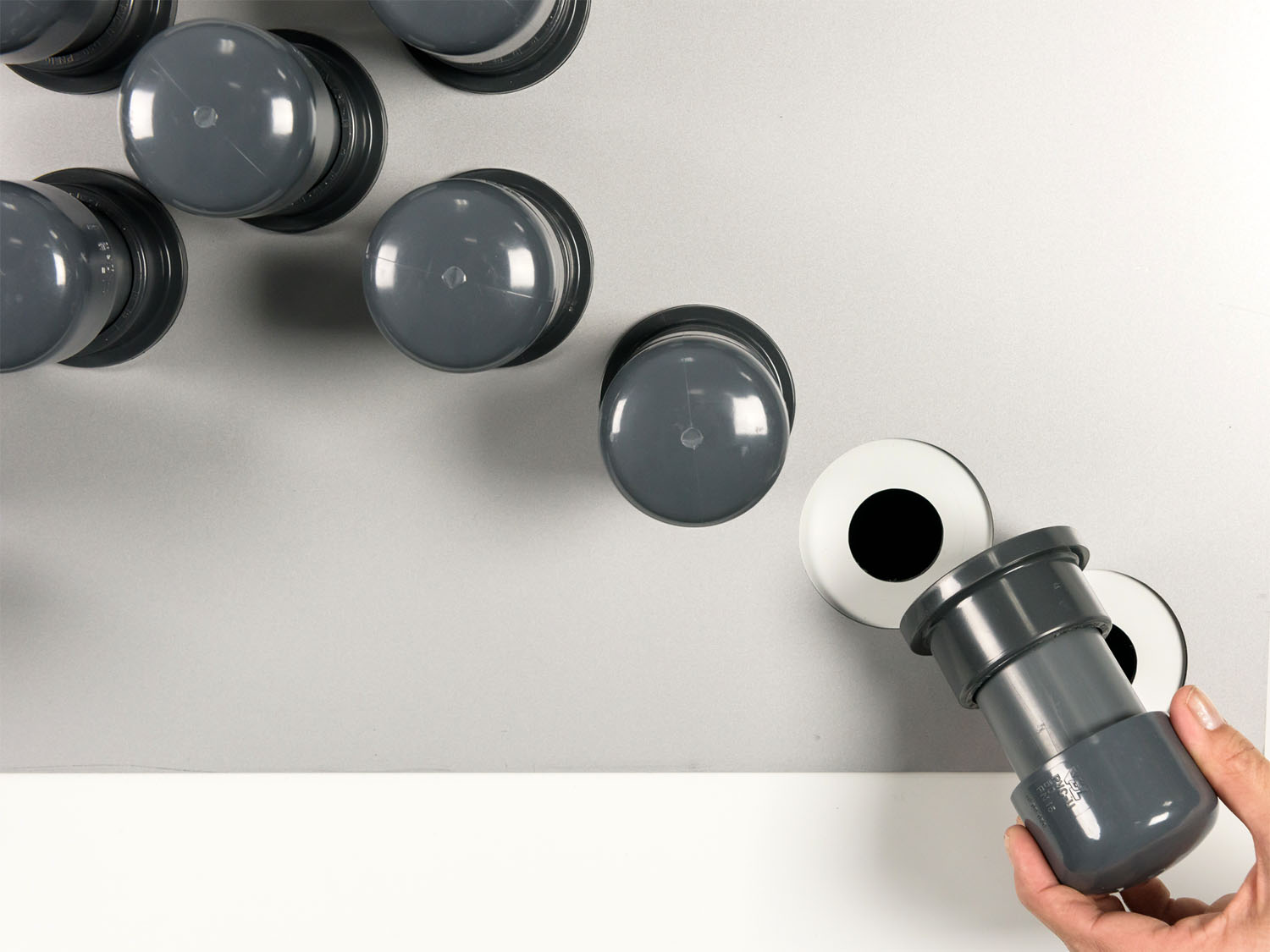

Recesses are arranged on this reflective test chart on the two diagonals, against which 17 light traps (super black holes) can be attached from the backside. Testers can remove the robust light traps easily during assembly, chart changes or for storage.
Standard illumination systems like Hedler halogen lamps are suitable for the illumination.
The analysis can be made using the iQ-Analyzer’s Flare module (from version 6.1).
We also offer a transparent version of the TE281 as a customized solution. This version is based on the TE255 diffuser and adds highly absorbent black patches onto the surface of the diffuser. These patches are also absorbent in IR.
Please contact our sales team for further information.
| Type | reflective |
| Format | A1066 |
| Aspect ratio | 3:2 |
Documents
Chart sizes
The test charts are available in the sizes listed below. Please note that some charts cannot be manufactured in all sizes due to technical reasons. Please do not hesitate to ask for additional information.
During production, specific regions of test charts are measured to qualify the production process or to create individual reference data accompanying a test chart additionally. Measured regions can be color or gray tones.
The measurement devices are calibrated regularly and proven before use. You can find further information in our reference data accuracy sheet.
Reflective
| Picture size w x h [mm] | Chart size w x h x d [mm] (+/- 2 mm)* | ||
|---|---|---|---|
| 4:3 | 16:9 | ||
| A1066 | 800 x 600 | - | 1245 x 835 x 3.2 |
| A1066 (TE42*) | 900 x 675 | - | 1245 x 835 x 3.2 |
| A1066 | - | 1066 x 600 | 1400 x 835 x 3.2 |
| A1066 (TE42*) | - | 1200 x 675 | 1400 x 835 x 3.2 |
| A540 | 540 x 405 | 540 x 303.75 | 600 x 500 x 3.2 |
| A460 | 460 x 345 | 460 x 258.75 | 600 x 500 x 3.2 |
| A444 | - | 444.4 x 250 | 600 x 500 x 3.2 |
| A360 | 360 x 270 | 360 x 202.5 | 500 x 400 x 3.2 |
| K360 | - | 360 x 202.5 | 390 x 271 x 2.1 |
| A280 | 280 x 210 | 280 x 157.5 | 365 x 305 x 3.2 |
| K280 | 280 x 210 | 280 x 157.5 | 334 x 271 x 2.1 |
| P280 | May vary in size with the chart layout | 334 x 271 x 2.1 | |
| K180 | - | 180 x 101 | 204 x 164 x 2.1 |
| K160 | 160 x 120 | - | 204 x 164 x 2.1 |
A charts (size 280/360/460) are mounted on aluminium plates.
A charts (size 1066) are mounted on aluminum composite panels (aluminum dibond).
K charts mounted on black polystyrene plates are only available in combination with the test chart folders
P charts are mounted on black polystyrene plates.
*Sizes are for all variations of the TE42 chart series, including TE42 V2, TE42-LL, TE42-LL Timing
Transparent
| Picture size w x h [mm] | Chart size w x h x d [mm] (+/- 2 mm)* | ||
|---|---|---|---|
| 4:3 | 16:9 | ||
| D280 | 280 x 210 | 280 x 157.5 | 360 x 280 x 4.6 |
| D240 | 240 x 180 | 240 x 135 | 320 x 290 x 4.6 |
| D240S | 240 x 180 | 240 x 135 | 360 x 280 x 4.6 |
| D205 | 205 x 153 | 205 x 115.3 | 253 x 202 x 3.5 |
| D120 | 120 x 90 | 120 x 67.5 | 155 x 135 x 4.0 |
| D60 | 60 x 60 | - | 100 x 100 x 4.5 |
| D35 | 32 x 24 | - | 50 x 50 x 3-4 |
D60 charts are intended to be used with the Vega light source and are constructed with aluminum, PLA plates, and a magnet mount. .
D35 charts are either between glass plates or mounted in slide frames (glassless).
There are exceptions regarding mounting and size for special charts.
Suitable transparent charts for the following illuminators
| D280 / D240S | D240 | D205 | |
|---|---|---|---|
| Spherical transparency illuminator LE6/LE7 Lightbox illuminator LG3 Sony Pattern Box |
DNP standard viewer | Porta Pattern spherical transparency illuminator |
|
| With adapter | Spherical transparency illuminator LE6/LE7 Lightbox illuminator LG3 |
||
*Chart sizes may vary by +/- 2 mm as they are handmade in house.
